Electronic Microscope Room
Transmission Electron Microscope
| Manufacturer | JEOL |
|---|---|
| Model number | JEM-1400Plus |
| Type of use | self-use / observation service |
| Overview | Transmission electron microscope |
| Spec | Accelerating voltage: 40kV to 120kV (variable) Electron gun: thermal electron emission (W) Magnification: x10 to x 1,200,000 Resolution: particle image 0.38nm, lattice image 0.2nm Specimen tilt angle（Tilt-X）: ±25° (standard holder) / ±70° (high tilt specimen holder) |
| Outside User | Impossible |
| Booking | https://chem-eqnet.ims.ac.jp/ |
| Remarks | ・New users need to take a training course. ・The price list for sample preparation and observation is here. |
Scanning Electron Microscope
| Manufacturer | JEOL |
|---|---|
| Model number | JCM-6000 |
| Type of use | self-use/ observation service |
| Overview | Neoscope benchtop scanning electron microscope |
| Spec | Accelerating voltage: secondary electron image 5, 10, 15kV, backscattered electron image 10, 15kV Electron gun: small gun with cartridge filament integrating wehnelt Magnification: Secondary electron image: x10 to x60,000, Backscattered electron image: x10 to x30,000 |
| Outside User | Impossible |
| Booking | https://chem-eqnet.ims.ac.jp/ |
| Remarks | ・New users need to take a training course. ・The price list for sample preparation and observation is here. *SEM was moved to next room 311 since April 2024. |
Smart Coater
| Manufacturer | JEOL |
|---|---|
| Model number | DII-29010SCTR |
| Type of use | self-use |
| Overview | Smart Coater for SEM |
| Spec | Target: Au |
| Outside User | Impossible |
| Booking | – |
Freeze Drying Device
| Manufacturer | JEOL |
|---|---|
| Model number | JFD-320 |
| Type of use | self-use |
| Overview | Freeze drying device |
| Spec | Solvent: tert-butyl alcohol |
| Outside User | Impossible |
| Booking | – |
Ion Coater
| Manufacturer | Eiko |
|---|---|
| Model number | IB-2 |
| Type of use | self-use |
| Overview | Conductive treatment equipment for SEM samples |
| Spec | Pt-Pd coating |
| Outside User | Impossible |
| Booking | – |
| Remarks | Pt-Pd coatings only |
Ultramicrotome
| Manufacturer | Leica |
|---|---|
| Model number | UC7 |
| Type of use | self-use |
| Overview | Ultramicrotome for room temperature |
| Spec | Section thickness setting: 〜15um |
| Outside User | Impossible |
| Booking | – |
| Remarks | Please consult to person in charge. |
Vacuum Evaporator
| Manufacturer | JEOL |
|---|---|
| Model number | JEE-420T |
| Type of use | consultation required |
| Overview | Vacuum Evaporator |
| Spec | Deposition source: C |
| Outside User | Impossible |
| Booking | – |
| Remarks | Please consult to person in charge. |
Freeze Fracture Device
| Manufacturer | JEOL |
|---|---|
| Model number | JFD-Ⅴ |
| Type of use | consultation required |
| Overview | Freeze fracture device |
| Spec | Deposition source: Pt-C, C |
| Outside User | Impossible |
| Booking | – |
| Remarks | Please consult to person in charge. |

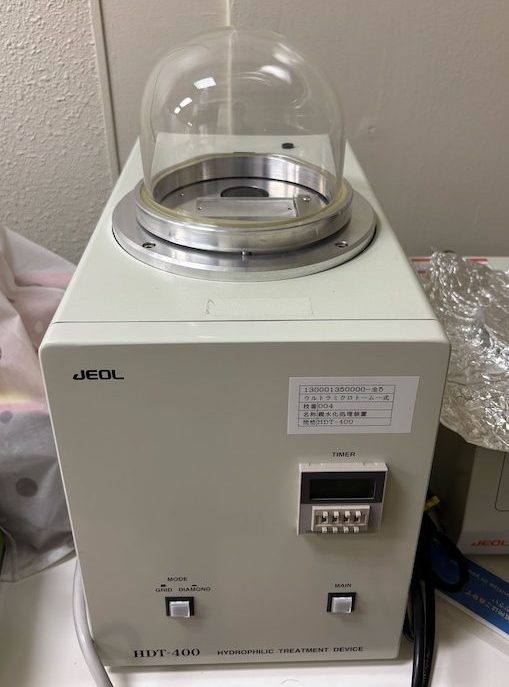

FE-SEM SUPRA40VP
| Manufacturer | JEOL |
|---|---|
| Model number | HDT-400 |
| Type of use | self-use |
| Overview | Hydrophilization of the TEM support film surface, and of the SEM sample support table |
| Spec | Equipment for Hydrophilic treatment |
| Outside User | Impossible |
| Booking | – |
